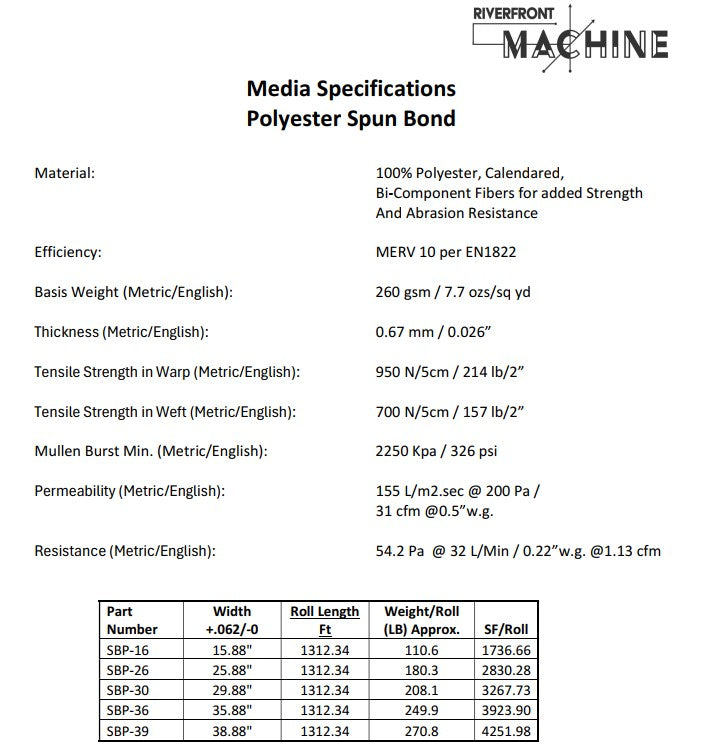

RIVX MEDIA POYESTER SPUN BOND

Media Specifications Polyester Spun Bond



Material: 100% Polyester, Calendared, Bi-Component Fibers for added Strength And Abrasion Resistance

Efficiency: MERV 10 per EN1822

(Metric/English):

Basis Weight: 260 gsm / 7.7 ozs/sq yd

Thickness: 0.67 mm / 0.026"

Tensile Strength in Warp: 950 N/5cm / 214 lb/2"

Tensile Strength in Weft: 700 N/5cm / 157 lb/2"

Mullen Burst Min.: 2250 Kpa / 326 psi

Permeability: 155 L/m2.sec @ 200 Pa / 31 cfm @0.5" w.g.

Resistance: 54.2 Pa @ 32 L/Min / 0.22" w.g. @1.13 cfm



PART NUMBER   WIDTH +.062/-0

SBP-16         15.88”

SBP-26         25.88"

SBP-30         29.88"

SBP-36         35.88"

SBP-39         38.88"
