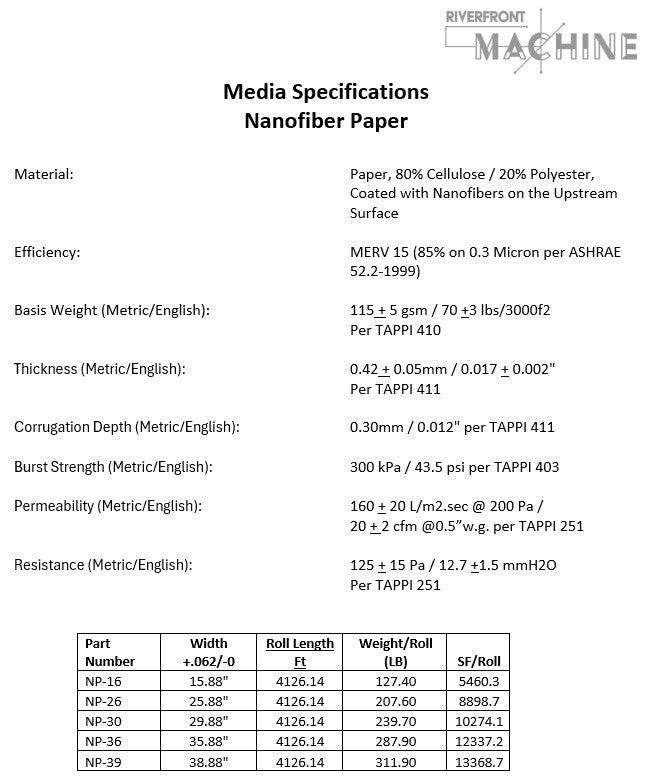

RIVX MEDIA NANO

Media Specifications Nanofiber Paper

Material: Paper, 80% Cellulose / 20% Polyester, Coated with Nanofibers on the Upstream Surface

Efficiency: MERV 15 (85% on 0.3 Micron per ASHRAE 52.2-1999)

(Metric/English):

Basis Weight 115 + 5 gsm / 70 +3 lbs/3000f2 Per TAPPI 410

Thickness: 0.42 + 0.05mm / 0.017 + 0.002" Per TAPPI 411

Corrugation Depth: 0.30mm / 0.012" per TAPPI 411

Burst Strength:  300 kPa / 43.5 psi per TAPPI 403

Permeability: 160 + 20 L/m2.sec @ 200 Pa /20 + 2 cfm @0.5”w.g. per TAPPI 251

Resistance: 125 + 15 Pa / 12.7 +1.5 mmH2O Per TAPPI 251



PART NUMBER   WIDTH +.062/-0

NP-16   PPR         15.88”

NP-26   PPR         25.88"

NP-30   PPR         29.88"

NP-36   PPR         35.88"

NP-39   PPR         38.88"
