RIVX MEDIA FR 80/20

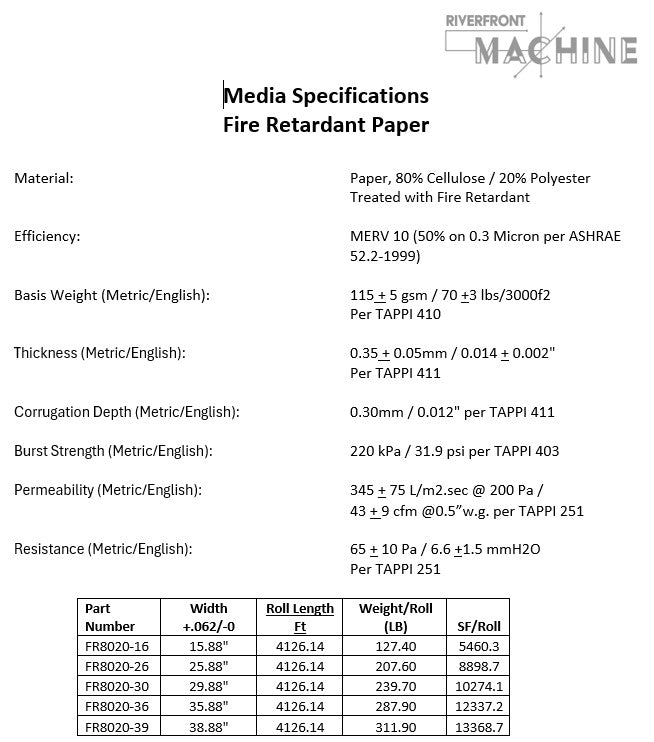

Media Specifications Fire Retardant Paper



Material: Paper, 80% Cellulose / 20% Polyester Treated with Fire Retardant

Efficiency: MERV 10 (50% on 0.3 Micron per ASHRAE 52.2-1999)

(Metric/English):

Basis Weight: 115 + 5 gsm / 70 +3 lbs/3000f2 Per TAPPI 410

Thickness: 0.35 + 0.05mm / 0.014 + 0.002"Per TAPPI 411

Corrugation Depth: 0.30mm / 0.012" per TAPPI 411

Burst Strength: 220 kPa / 31.9 psi per TAPPI 403

Permeability: 345 + 75 L/m2.sec @ 200 Pa /43 + 9 cfm @0.5”w.g. per TAPPI 251

Resistance: 65 + 10 Pa / 6.6 +1.5 mmH2O Per TAPPI 251

PART NUMBER   WIDTH +.062/-0

FR8020-16         15.88”

FR8020-26          25.88"

FR8020-30          29.88"

FR8020-36          35.88"

FR8020-39          38.88"
